V‐Bank Medium Filter
V‐bank filters have been developed specifically for intake, exhaust and recirculated air filtration in HVAC systems posing stringent requirements for clean air quality and cost‐efficiency. Efficiency from M5 to H14 can be made in V‐bank form.
The medium efficiency V‐bank filters serve as pre‐ or main‐filtration elements for environments with voluminous airstreams and/or when long lifespan is necessary. The rigid and corrosion resistant plastic frame ensures easy disposal of the used filter because it is totally combustible.Existing bag filter stages can be easily upgraded by exchange due to the fact that V‐bank filter fit into standard bag filter mounting frames.
The medium efficiency V‐bank filters serve as pre‐ or main‐filtration elements for environments with voluminous airstreams and/or when long lifespan is necessary. The rigid and corrosion resistant plastic frame ensures easy disposal of the used filter because it is totally combustible.Existing bag filter stages can be easily upgraded by exchange due to the fact that V‐bank filter fit into standard bag filter mounting frames.
Standard Size & Performace Parameters
| Type: | VS‐M6 | VS‐F7 | VS‐F9 |
| Class EN779 | M6 | F7 | F9 |
| Efficiency EN779 [%] | 65% | 85% | 95% |

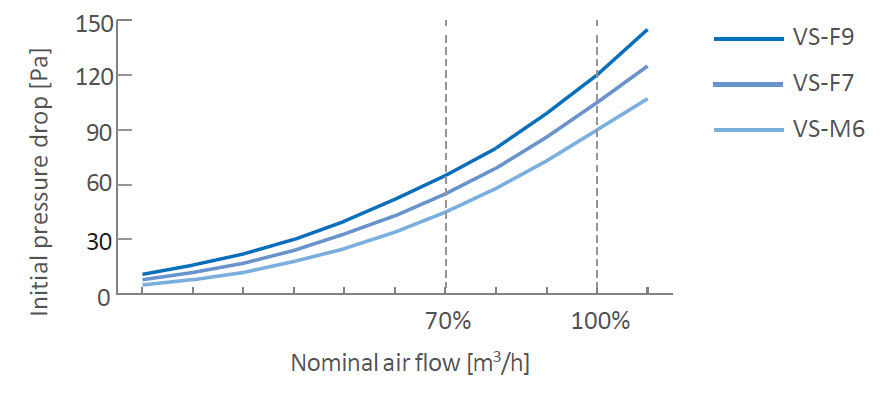

| Initial‐ΔP[Pa](A/B) | 65/120 | 75/140 | 85/165 |
| Recc. finalΔP | 600 | 600 | 600 |
| Max. temp. [°C] | 65° | 65° | 65° |
| Model (E=efficiency N=V quantity) |
Width | Height | Depth | Nominal airoflw [m3/h] |
V quantity |
| VS592592292‐E (M6‐F9) N5 | 592 | 592 | 292 | 3000 | 5 |
| VS592592292‐E (M6‐F9) N4 | 490 | 592 | 292 | 2400 | 4 |
| VS287592292‐E (M6‐F9) N4 | 287 | 592 | 292 | 1200 | 4 |
| Frame | corrosion resistant plastic |
| Operational conditions | ▪ max. rel. h.100 [%] ▪ max. temp. 65 [°C], short term peak up to max. 80 [°C] |
| Spacers | thermoplastic (minipleat) |
| Filtermedia | high quality glass fibre paper (water resistant), pressure drop may temporarily increase at high humidity levels |
| Combustible | Yes |
| Options | ▪ burst protector / protection screen ▪ foamed gasket on theclean air side of the flange ▪ V quantity is available from 2‐5v |
