Panel Filter
Panel filter with compact construction, small volume, light weight and ease to be purged, assembled and removed, may be installed separately or laminated in front of bag filter. Panel filter is mainly used to filter and remove ≥5μm dust particles in air conditioning system, protect the fine filter and prolong its service life. The ordinary panel filter size is 592×592.
Standard Size & Performace Parameters
| Type: | PF‐G4 | PF‐M5 |
| Class EN779 | G4 | M5 |
| Efficiency against synthetic dust [%] | 91% | 97% |

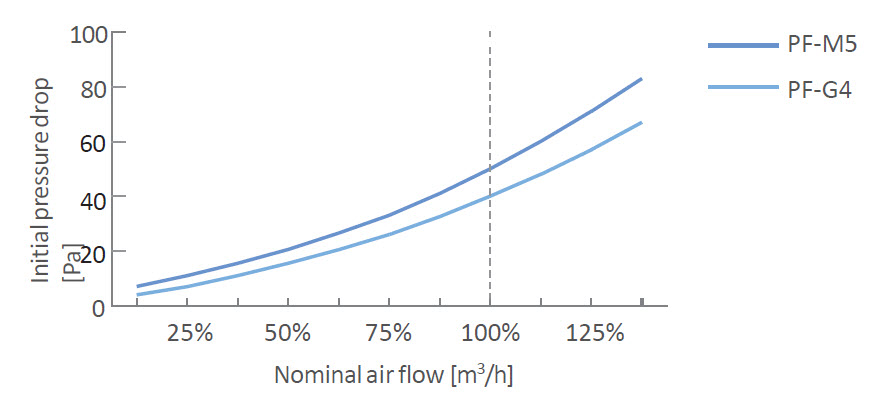

| Initial‐ΔP | 25 | 60 |
| Recommended finalΔP [Pa] | 250 | 400 |
| Max. temp. [°C] | 70° | 70° |
| Model (E=efficiency) |
Dimensions [mm] | Nominal airflow [m3/h] |
||
| Width | Height | Depth | ||
| PF28759246‐E (G4/M5) | 287 | 592 | 46 | 1600 |
| PF28759246‐E (G4/M5) | 592 | 592 | 46 | 3200 |
Note: We can also produce non‐standard filters of 150≤W≤1184,150≤H≤1184 and 10≤D≤292.
| Frame | ▪ galv. steel ▪ Aluminum |
| Operational conditions | max. rel. h. 100%, max. temp. 80°C |
| Options | Formed gasket (single / double side) EPDM gasket |
