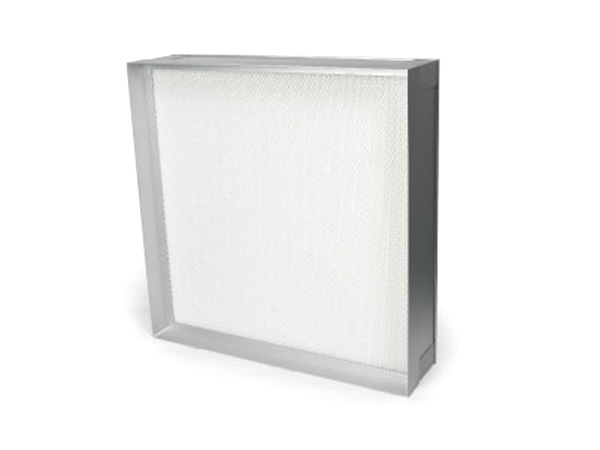

MiniPleat HEPA / ULPA Filter
MiniPleat HEPA/ULPA are used in intake and recirculating air filtration for

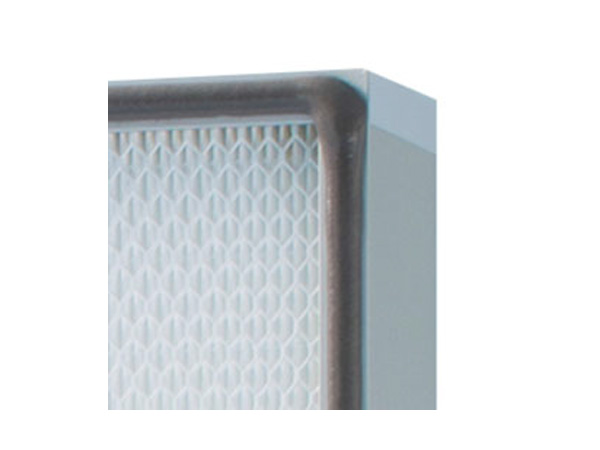

cleanrooms and in laminar flow hoods with ultra‐stringent requirements for clean air and sterility. The MiniPleat technology employed ensures flow‐friendly geometry and equidistance of the pleats, with homogeneous media velocity coupled with a very low pressure drop. This means particularly cost‐efficient and dependable operation plus a quasi‐laminar outflow.
Available in all dimensions commonly encountered on the market.
cleanrooms and in laminar flow hoods with ultra‐stringent requirements for clean air and sterility. The MiniPleat technology employed ensures flow‐friendly geometry and equidistance of the pleats, with homogeneous media velocity coupled with a very low pressure drop. This means particularly cost‐efficient and dependable operation plus a quasi‐laminar outflow.
Available in all dimensions commonly encountered on the market.
Standard Size & Performace Parameters
| Type: | MP‐E11 | MP‐H13 | MP‐H14 | MP‐U15 |
| Class EN1822 | E11 | H13 | H14 | U15 |
| Efficiency EN1822@ MPPS [%] | >95% | >99.95% | >99.995% | >99.9995% |

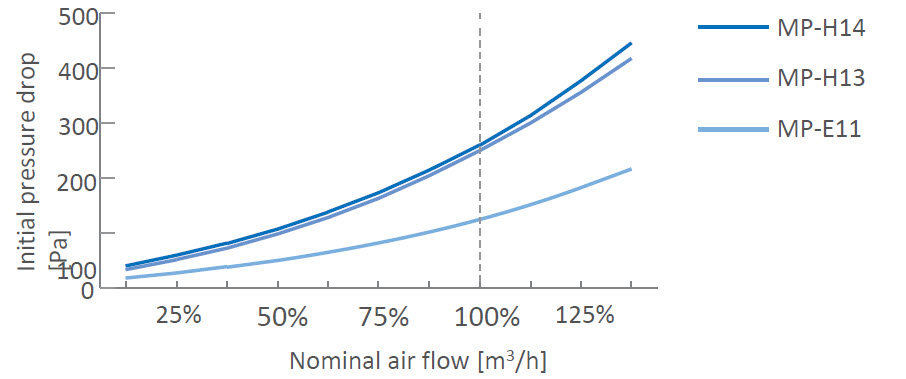

| Initial‐ΔP[Pa] at nominal airflow | 95 | 125 | 160 | 250 |
| Rec. final pressure drop [Pa] | 200 | 300 | 350 | 450 |
| Max. temp. [°C] | 80° | 80° | 80° | 80° |
| Model (E=efficiency) |
Width | Height | Depth | Nominal airoflw [m3/h] |
| MP61061069‐E (E11‐U17) | 610 | 610 | 69 | 1000 |
| MP122061069‐E (E11‐U17) | 1220 | 610 | 69 | 2000 |
| MP117057070‐E (E11‐U17) | 1170 | 570 | 70 | 1100 |
| MP117087070‐E (E11‐U17) | 1170 | 870 | 70 | 1750 |
| MP1170117070‐E (E11‐U17) | 1170 | 1170 | 70 | 2200 |
| Frame | Aluminum |
| Spacers | EVA |
| Filtermedia | high quality glass fibre paper (water resistant) |

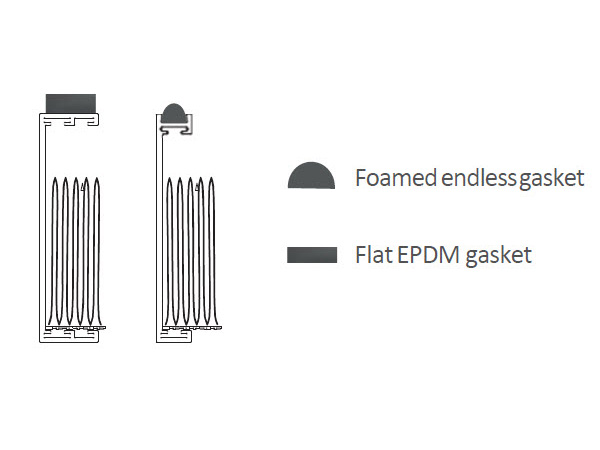

| Options | ▪ Foamed endless gasket (single / double side) ▪ Flat EPDM gasket ▪ Knife edge |
