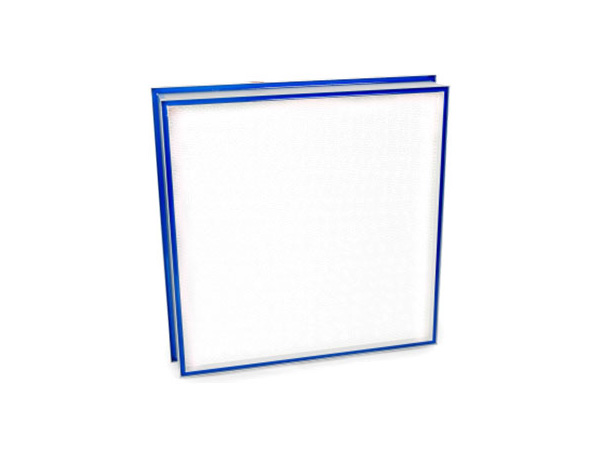

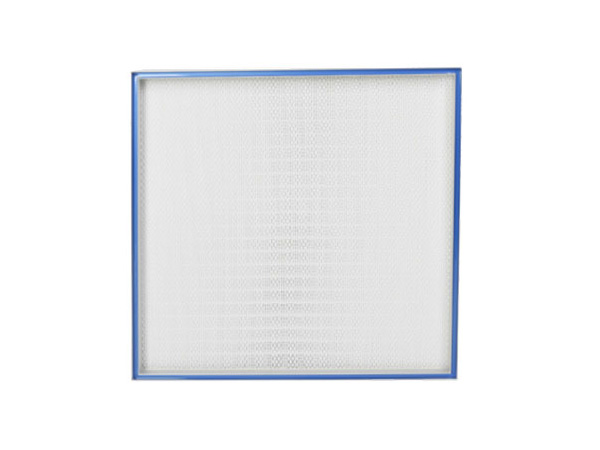

Gel‐Seal MiniPleat HEPA / ULPA Filter

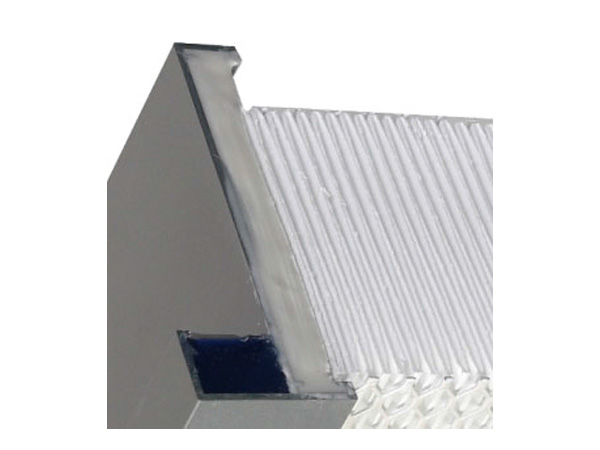

Gel‐seal MiniPleat HEPA filters have the tank filled with gel, which is reliable and particularly suitable for workplaces for DOP test and leakage detection on site. This filters is mainly installed at the end of 0.5μm clean rooms and purifying equipment in pharmaceutical industry to control particulates larger than 0.5μm and microorganisms in the clean room or equipment operating areas. Gel seal minipleat HEPA filters have side seal type and top seal type for options.
Standard Size & Performace Parameters
| Model (E=efficiency) |
Width | Height | Depth | Nominal airoflw [m3/h] |
| MP41041093‐E (E11‐U17) | 410 | 410 | 93 | 500 |
| MP55055093‐E (E11‐U17) | 550 | 550 | 93 | 1000 |
| MP65065093‐E (E11‐U17) | 650 | 650 | 93 | 1500 |
| MP106055093‐E (E11‐U17) | 1060 | 550 | 93 | 2000 |
| MP370370104‐E (E11‐U17) | 370 | 370 | 104 | 500 |
| MP510510104‐E (E11‐U17) | 510 | 510 | 104 | 1000 |
| MP610610104‐E (E11‐U17) | 610 | 610 | 104 | 1500 |
| MP1020510104‐E (E11‐U17) | 1020 | 510 | 104 | 2000 |
| Frame | Aluminum |
| Spacers | EVA |
| Filtermedia | high quality glass fibre paper (water resistant) |
| Options | ▪ Side gel seal ▪ Top gel seal ▪ Double gel seal ▪ Gasket and gel seal |
