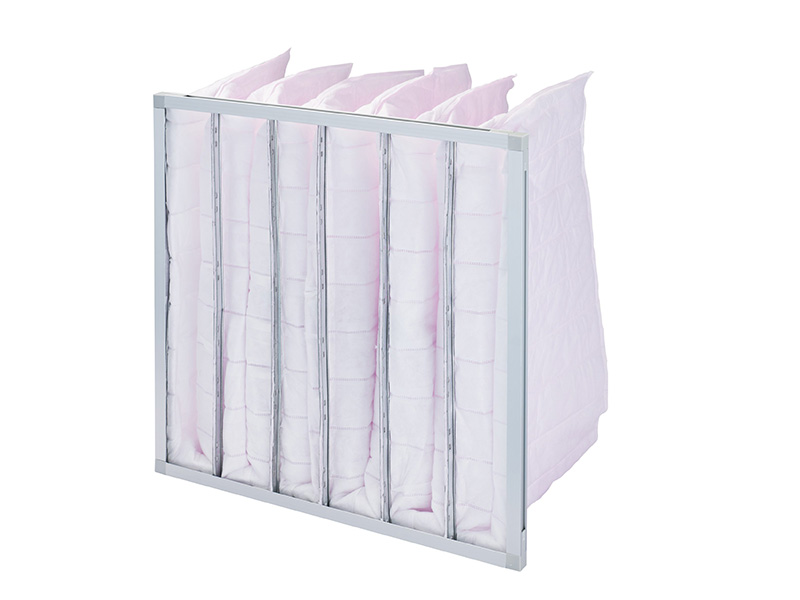

Bag Filter - Fine Dust
Bag fine filter is mainly used to filter and remove ≥1μm dust particles in air
conditioning system, protect the subsequent sub‐high efficiency or high efficiency filter and prolong their service life. Based on different filter performance requirements, the filter media of bag filter may be multi‐layer compound synthetic fiber bucket materials, synthetic fiber non‐woven fabrics of different thicknesses, glass fiber cotton, etc. The efficiency stays constant even with varying airflows. Also, the bags are intrinsically stiff while being exposed to the airstream. Inrder to guarantee a proper stability even with over‐size filters.
conditioning system, protect the subsequent sub‐high efficiency or high efficiency filter and prolong their service life. Based on different filter performance requirements, the filter media of bag filter may be multi‐layer compound synthetic fiber bucket materials, synthetic fiber non‐woven fabrics of different thicknesses, glass fiber cotton, etc. The efficiency stays constant even with varying airflows. Also, the bags are intrinsically stiff while being exposed to the airstream. Inrder to guarantee a proper stability even with over‐size filters.
Standard Size & Performace Parameters
| Type: | BF‐F7 | BF‐F8 | BF‐F9 |
| Class EN779 | F7 | F8 | F9 |
| Average efficiency (Em) for 0.4μm particles |
80% ≤ Em < 90% | 90% ≤ Em < 95% | 95% ≤ Em |

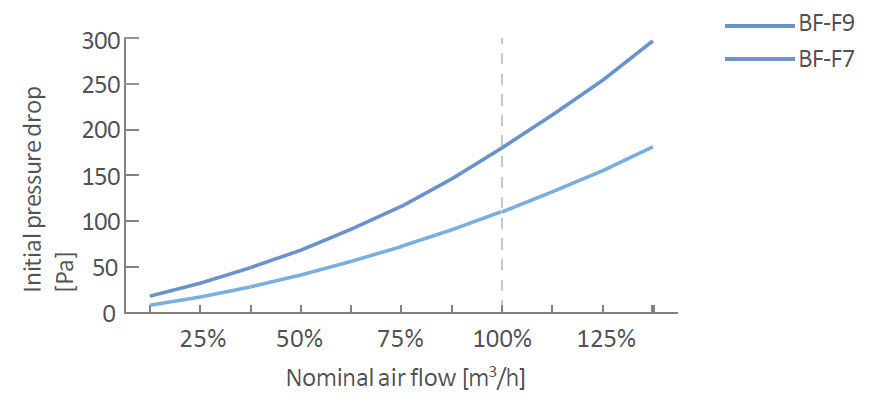

| Initial‐ΔP [Pa] at nominal air flow |
110 | 120 | 185 |
| Model (D=depth/E=efficiency) |
Dimensions [mm] |
Nominal air flow [m³/h] | Pockets quantity | |||
| Width | Height | Depth 300 [mm] | Depth 500 [mm] | Depth 650 [mm] | ||
| BF592592D‐E (F7‐F9) | 592 | 592 | 1570 | 2620 | 3400 | 8 |
| BF490592D‐E (F7‐F9) | 490 | 592 | 1300 | 2160 | 2800 | 6 |
| BF287592D‐E (F7‐F9) | 287 | 592 | 790 | 1210 | 1700 | 4 |
| BF287287D‐E (F7‐F9) | 287 | 287 | 400 | 660 | 850 | 4 |
| BF592892D‐E (F7‐F9) | 592 | 892 | 2360 | 3930 | 5100 | 8 |
| BF287892D‐E (F7‐F9) | 287 | 892 | 1180 | 1970 | 2550 | 4 |
| Frame | ▪ galv. steel ▪ Aluminum |
| Operational conditions | max. rel. h. 100 %, max. temp. 70°C |
| Filtermedia | ▪ Progressive synthetic fibre ▪ Glassfiber |
| Options | ▪ Various customized sizes ▪ foamed gasket onto front frame |
